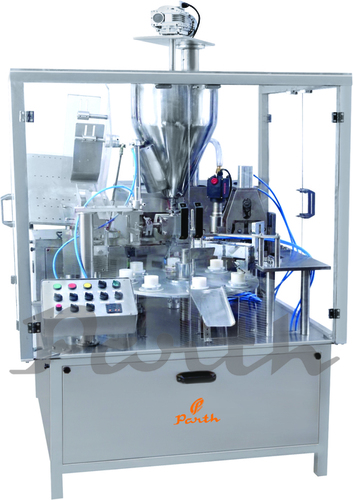

Automatic Tube Filling Machine
1050000 INR/Unit
Product Details:
- Type Packaging Line
- Material SS
- Feature Durable, Highly Efficient
- Auxiliary Packaging Machine Type Other
- Computerized No
- Automatic Grade Automatic
- Control System Human Machine Interface
- Click to View more
X
Automatic Tube Filling Machine Price And Quantity
- 1050000 INR/Unit
- 1 Unit
Automatic Tube Filling Machine Product Specifications
- Durable, Highly Efficient
- Packaging Line
- SS
- Human Machine Interface
- Mechanical
- No
- Automatic
- Other
Automatic Tube Filling Machine Trade Information
- ICD Khodiyar - Ahmedabad / Nava sheva
- Cheque, Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T)
- As per requirement Per Month
- Months
- Crate Packing, Base Packing, Export Worthy Wooden Packing
- Australia, Central America, North America, Eastern Europe, Western Europe, Middle East, Africa, South America, Asia
- All India
- CE, ISO 9001 : 2015, D & B
Product Description
| Model – Single Head Tube Filler | PTF-60 | |
| Output/minute | 30 to 40 in single head 60 to 70 Tubes double head. |
|
| Direction of Movement | Left to Right Rotary | |
| No. of Sealing Head | 1 & 2 | |
| Electrical Specification** | Main Motor | 2 HP / 415 Volts / 50 Hz. |
| Height of Hopper** | Dia 400 & h 500 | |
| Machine Dimensions** | 800 mm (L) x 800 mm (W) x 1550 (H) | |
| Case Dimensions | 1200 mm (L) x 1000 mm (W) x 1850 (H) | |
| Net Weight | 450 Kg. | |
| Gross Weight | 580 Kg. | |
| Change parts required | (A) Tube holder (B) Nozzle |
|
INPUT SPECIFICATIONS:
| Tube size Specification |
Diameter** | 12.7mm to 40 mm*** |
| Height** | 45 to 200 mm | |
| Tube Size** | Round Shape | 12.7 mm to Ø 40 mm*** |
| * Depends on Tube size, ** We can supply as per customer requirements. *** With help of change parts. |
||
SALIENT FEATURES:
- No Tube No Filling arrangement.
- SS304 hair lined pre-finished Covering
- Single motor synchronizes platform turret.
- Adjustable height with Screw Up down plate movement
- Adjustable Sealing pressure.
- Low noise level, low power consumptions.
- SS cladding or hard chrome plated of all exposed parts to ensure long life and resistance against corrosion.
- Synchronized A/C drives to synchronize,
MAIN FETCHERS FOR TUBE FILLING MACHINE
- Machine Speed 60-70 Tubes/Minute Depend upon fill volume
- Filling accuracy -1% of filling weight.
- Filling Upto 5gm- 200gm
- Tube Diameter:-12mm-35mm
- Tube length:-45mm-200mm Long
- Easy in changeover one tube to other diameter tube
- Power Required 1.5 to Max 4kw
OPTIONAL FEATURES OF TUBE FILLER:
- PLC Control.
- Acrylic cabinet for safety work.
- Safety guards for doors.
- Jacketed Hopper
- Stirrer Assly
