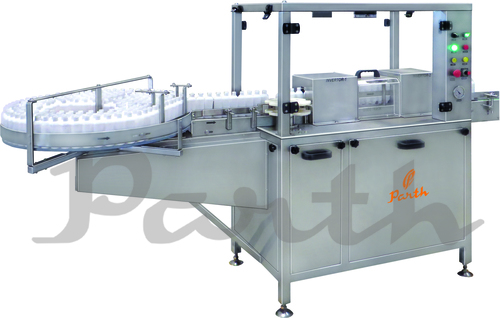

AIRJET CLEANING MACHINE

AIRJET CLEANING MACHINE
AIRJET CLEANING MACHINE
Product Code : airjet-linera-cleaning-machine
Product Description

AIRJET CLEANING MACHINE

Operation: This machine operates on the principle of Bottle back pressure, which will be supported by the Turn Table to conveyor where a star plate is provided which runs mechanically. Also, there is a clutch given for the damage prevention. The role of the star plate is to push the bottle into inverter. There are three zones: first of all inverter which reverse the bottle; second is the cleaning area where air-pressure is to be provided; and vacuum section is to be presented where dust is to be collected; the vacuum section is connected with the dust extractor. This extracts the dust after the process, the bottle get into the third zone, which changes the bottle into actual position for the adjacent operation.

Technical Specification:

Model PALJC-120
Out put / Hour* 2600 to 6000
Direction of Machine** Left to Right
Power**
Consumption
Main Motor 1.0 HP / 415 Volts / 50 Hz
Unscrambler 0.25 hp
Blower Motor. 0.75 HP / 415 Volts / 50 Hz
Blower Tank Capacity 120 cfm
Working height 850 to 900 mm
Consumption of Air 6 Kg/cm2
Machine Dimension 2200 mm (L) x 750 mm (W) x 850 mm (H)
Case Dimensions 2500 mm (L) x 900 mm (W) x 1050 mm (H)
Net Weight 600 Kgs.
Gross Weight 850 Kgs
